317L / UNS S31703 2b Stainless Steel Plate ASTM A240 0.4 - 30.0mm

Name: 317L UNS S31703 2b Stainless Steel Plate ASTM A240 04 300mm
Brand: TISCO BAOSTEEL
Price: 4000 USD

Wholesale 317L / UNS S31703 2b Stainless Steel Plate ASTM A240 0.4 - 30.0mm from china suppliers

Brand Name : TISCO BAOSTEEL

Model Number : 317L / UNS S31703 / EN 1.4438

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 4000-6000 USD/Ton

Payment Terms : T/T, Western Union

Supply Ability : 20Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Stainless Steel Plate

Grade : 317L / UNS S31703 / EN 1.4438

Thickness : 0.4-30.0mm

Width : 1500mm 1219mm 1000mm

Surface : NO.1 2B

Brand : POSCO TISCO

Standard : ASTM A240/240M

Loading Port : Shanghai Port

Contact Now

TISCO POSCO 317L / UNS S31703 Stainless Steel Sheet & Plate ASTM A240 0.4 - 30.0mm

Products	317L / S31703 Stainless Steel Plate
Width	1000mm/1219mm/1240mm/1500mm/2000mm or as customer's requirements
Thickness	cold rolled: 0.1-3mm; hot rolled: 3-100mm
Length	100mm to 12000mm or as customer's request
Surface	N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc
Material	201,202,301,302,303,304,304L,304N1,309S,310S,316,316L, 316Ti,316N,317,317L,321,409L,410,420,430,904,904L,etc
Grade	200/300/400/500/600/700/800/900 series/duplex stainless steel
Standards	AISI ASTM JIS SUS DIN GB
Brand	TISCO,ZPSS,Baosteel,POSCO,LISCO,YUSCO,Ansteel, QPSS,JISCO, HXSCO,Chengde,Yongjin,Tsingshan,Shouyang,

317L stainless steel plate is an austenitic, molybdenum-bearing grade of stainless steel with increased resistance to chemical attack when compared to basic chromium-nickel alloy such as 304. Due to its chemical composition, this steel plate offers higher creep strength, stress to rupture and tensile strength, specifically at elevated temperatures. This stainless steel plate is a low carbon grade which results in greater resistance to sensitization during welding and other important thermal processes.

This stainless steel plate is available for purchase at Penn Stainless Products in a variety of length, widths, and thicknesses. It can be purchased in plate mill plate thickness ranging between 0.188” and 1.0”. Other thickness and a variety of lengths and widths are available, consult with a member of the Penn Stainless Products team.

Type 317L stainless steel was first developed to resist attacks by sulfurous acid compounds. Consequently it has a proven ability to combat corrosion in other environments and is now used for many other industrial applications. Other features of 317L stainless steel include:

Higher creep, stress-to-rupture and tensile strength than other stainless steels.
Reduced intergranular precipitation of chromium carbides during welding and stress relieving.
A reduced possibility of corrosion failure from intergranular attack.
Resistance to pitting and crevice corrosion, which makes 317L a successful product for a variety of highly corrosive environments.

Regular Stock Size of Our S31703 Duplex Stainless Steel Plate

Cold Rolled S317L Sheet		Hot Rolled 317L Plate
Thickness	Size	Thickness	Size
0.4mm	1000*2000mm	4.0mm	1500*6000mm
0.5mm	1000*2000mm	5.0mm	1500*6000mm
0.6mm	1219*2438mm	6.0mm	1500*6000mm
0.7mm	1219*2438mm	8.0mm	1500*6000mm
0.8mm	1219*2438mm	10.0mm	1500*6000mm
1.0mm	1219*2438mm	12.0mm	1500*6000mm
1.2mm	1219*2438mm	14.0mm	1500*6000mm
1.5mm	1219*2438mm	16.0mm	1500*6000mm
2.0mm	1219*2438mm	20.0mm	1500*6000mm
2.5mm	1219*2438mm	25.0mm	1500*6000mm
3.0mm	1219*2438mm	30.0mm	1500*6000mm

Stainless Steel SA 240 Gr 317L Composition

SS	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
A240 317L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 - 20.00	3.00 - 4.00	11.00 - 15.00	57.89 min

Stainless Steel 317L Properties

Melting Range	Density	Tensile Strength (PSI/MPa)	Yield Strength (0.2%Offset) (PSI/MPa)	Elongation %
1400 °C (2550 °F)	7.9 g/cm3	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

Our Processing Service for 317L Stainless Steel Plate

Plasma cutting
Plate saw cutting
Shearing
Laser cutting
Waterjet cutting
Forming
Welding
Machining
Plate leveling

Applications of 317L Stainless Steel Plate

Grade 317L stainless steel is widely used in the following applications:

Condensers in fossil
Pulp and paper manufacturing
Nuclear fueled power generation stations
Chemical and petrochemical process equipment.

317L / UNS S31703 2b Stainless Steel Plate ASTM A240 0.4 - 30.0mm

Product Tags:

317L 2b stainless steel plate

2b stainless steel plate 0.4mm

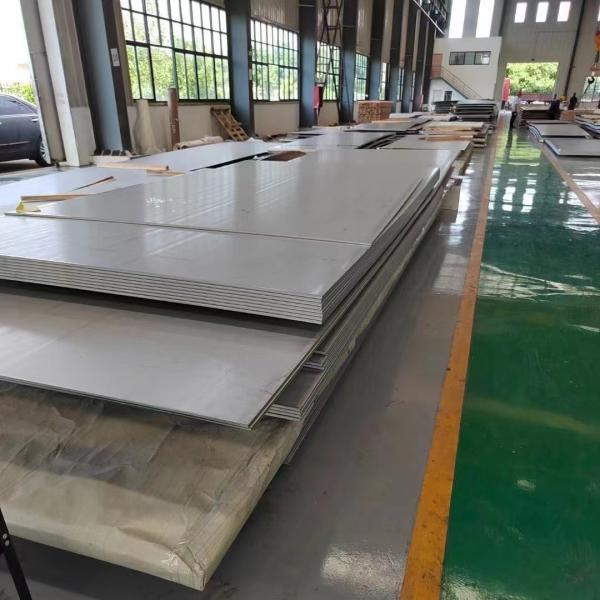

317L / UNS S31703 2b Stainless Steel Plate ASTM A240 0.4 - 30.0mm Images
