316Ti 1.0 - 30.0mm Mirror Stainless Steel Plate CR HR

Brand Name : TISCO BAOSTEEL

Model Number : 316Ti

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 4000-6000 USD/Ton

Payment Terms : T/T, Western Union

Supply Ability : 20Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Stainless Steel Plate

Grade : 316Ti

Thickness : 1.5 - 50.0mm

Width : 1500mm 1219mm 1000mm

Surface : NO.1 2B

Brand : POSCO TISCO BAOSTEEL

Standard : ASTM A240/240M

Loading Port : Shanghai Port

Contact Now

TISCO BAOSTEEL 316Ti Stainless Steel Plate 1.0 - 30.0mm CR HR SS Plate 316Ti Stainless

We are one of the Leading Manufacturer And Exporter of High Quality Stainless Steel 316TI Plate, which is slow to harden when being worked on and most welding methods are sufficient to yield desired results. In terms of working, both hot and cold working practices can be applied; however, these Stainless Steel 316Ti Sheets does not harden in response to hot working, only cold. Our Stainless Steel 316Ti Plates is a high – alloy austenitic stainless-steel with little carbon content, where the quality is meant for use under serious corrosive conditions. These Stainless Steel 316Ti Coils had been application proven over several years and was initially designed to withstand corrosion in dilute sulfuric acid.

Our Stainless Steel 316Ti Slating Coils will be standardized and also authorized for pressure vessel utilize in many nations. Structurally, this Stainless Steel 316Ti Perforated Coils is completely austenitic it is much less too sensitive to precipitation ferrite and as well sigma phases compared to conventional austenitic grades with higher molybdenum content. Characteristically, because of the mixture of relatively higher contents of chromium, nickel, molybdenum and copper, our 316Ti Stainless Steel Sheets provides high – quality resistance to basic corrosion, especially in sulfuric and also phosphoric conditions.

Stainless Steel 316TI Plate | Stainless Steel 316TI Plate | Stainless Steel 316TI Plate | Stainless Steel 316TI Plate | Stainless Steel 316TI Plate | Stainless Steel 316TI Plate | Stainless Steel 316TI Plate

The addition of copper to these 316Ti Stainless Steel Plates provides corrosion protected properties more advanced than the conventional chrome nickel stainless steel, specifically to sulphuric, phosphoric and as well acetic acids.

Stainless Steel 316TI Sheet, Plate & Coil Specifications
Specifications : ASTM A240 / ASME SA240
Thickness : 4mm-100mm
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface : 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
blast, Brush, etching, etc
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 316TI Plate, Sheet & Coil Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
SS 316Ti 0.08 max 2 max 0.75 max 0.045 max 0.030 max 16.00 – 18.00 2.00 – 3.00 10.00 – 14.00 68.395 min

Stainless Steel 316TI Sheets, Plates & Coils Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Equivalent Grades for 316TI Stainless Steel Sheets & Plates

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123 X6CrNiMoTi17-12-2

SS 316TI Sheets, Plate & Coils Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

Stainless Steel 316TI Sheets, Plate & Coils Test Certificates

We provide Manufacturer TC (Test Certificate) in accordance to EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report. We also provide Standard certificates like EN 10204 3.1 and additional requirement like. NACE MR 01075. FERRIT CONTENT as per norms if requested by clients.

• EN 10204/3.1B,
• Raw Materials Certificate
• 100% Radiography Test Report
• Third Party Inspection Report, etc.

Material Testing

We ensure that all our materials go through strict quality tests before dispatching them to our clients.

• Mechanical Testing Such as Tensile of Area
• Hardness Test
• Chemical Analysis – Spectro Analysis
• Positive Material Identification – PMI Testing
• Flattening Test
• Micro and Macro Test
• Pitting Resistance Test
• Flaring Test
• Intergranular Corrosion (IGC) Test

Documentation

• Commercial Invoice which includes HS Code
• Packing List including net weight and gross weight, number of boxes, Marks and Numbers
• Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
• Fumigation Certificates
• Raw Material Test Reports
• Material Traceability Records
• Quality Assurance Plan (QAP)
• Heat Treatment Charts
• Test Certificates certifying NACE MR0103, NACE MR0175
• Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
• Guarantee Letter
• NABL approved Laboratory Test Reports
• Welding Procedure Specification/Procedure Qualification Record, WPS/PQR
• Form A for the purposes of the Generalized System of Preferences (GSP)

Stainless Steel 316TI Plate
316Ti 1.0 - 30.0mm Mirror Stainless Steel Plate CR HR316Ti 1.0 - 30.0mm Mirror Stainless Steel Plate CR HR316Ti 1.0 - 30.0mm Mirror Stainless Steel Plate CR HR316Ti 1.0 - 30.0mm Mirror Stainless Steel Plate CR HR


Product Tags:

316Ti mirror stainless steel plate



1mm mirror stainless steel plate



30mm custom stainless steel plates


Wholesale 316Ti 1.0 - 30.0mm Mirror Stainless Steel Plate CR HR from china suppliers

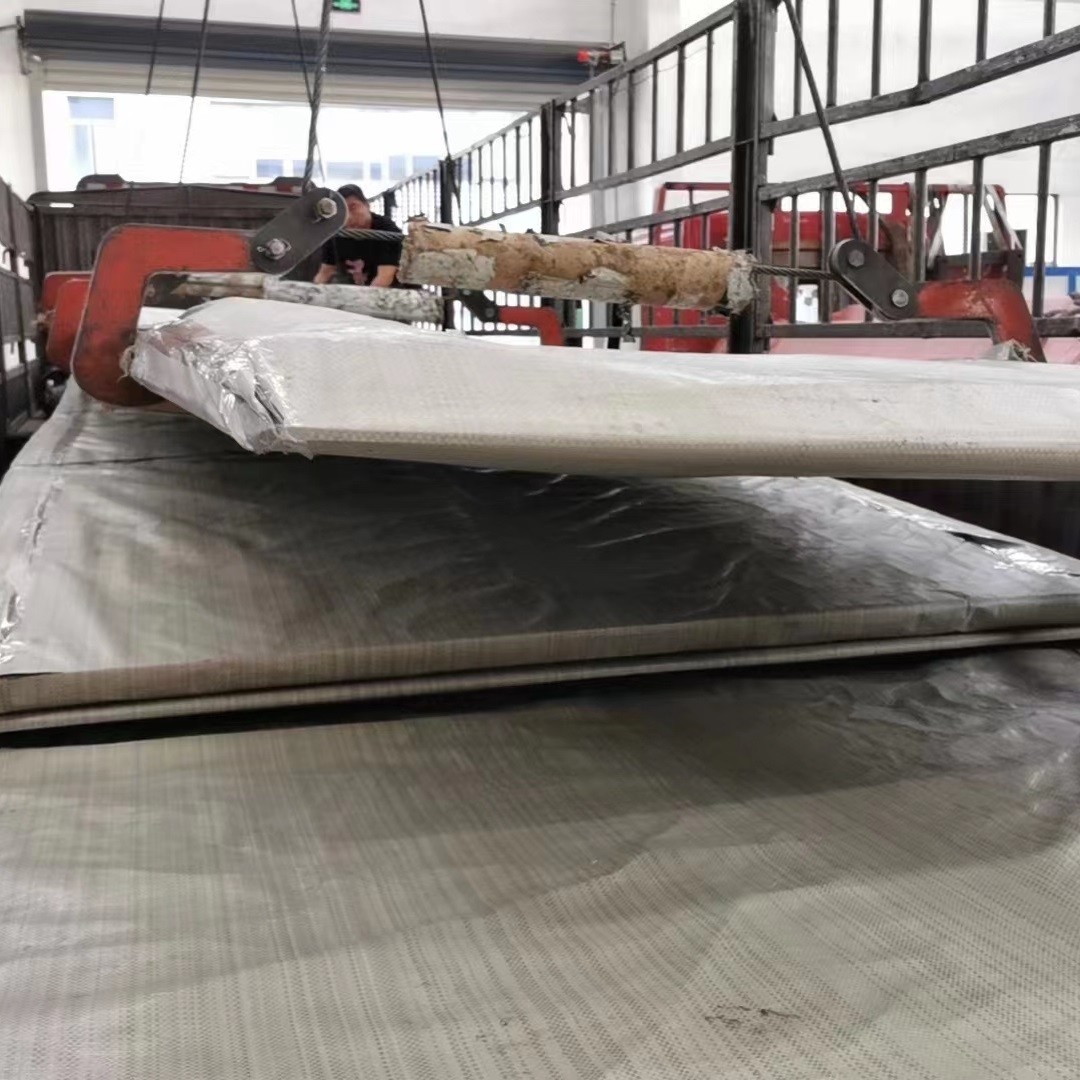

316Ti 1.0 - 30.0mm Mirror Stainless Steel Plate CR HR Images
