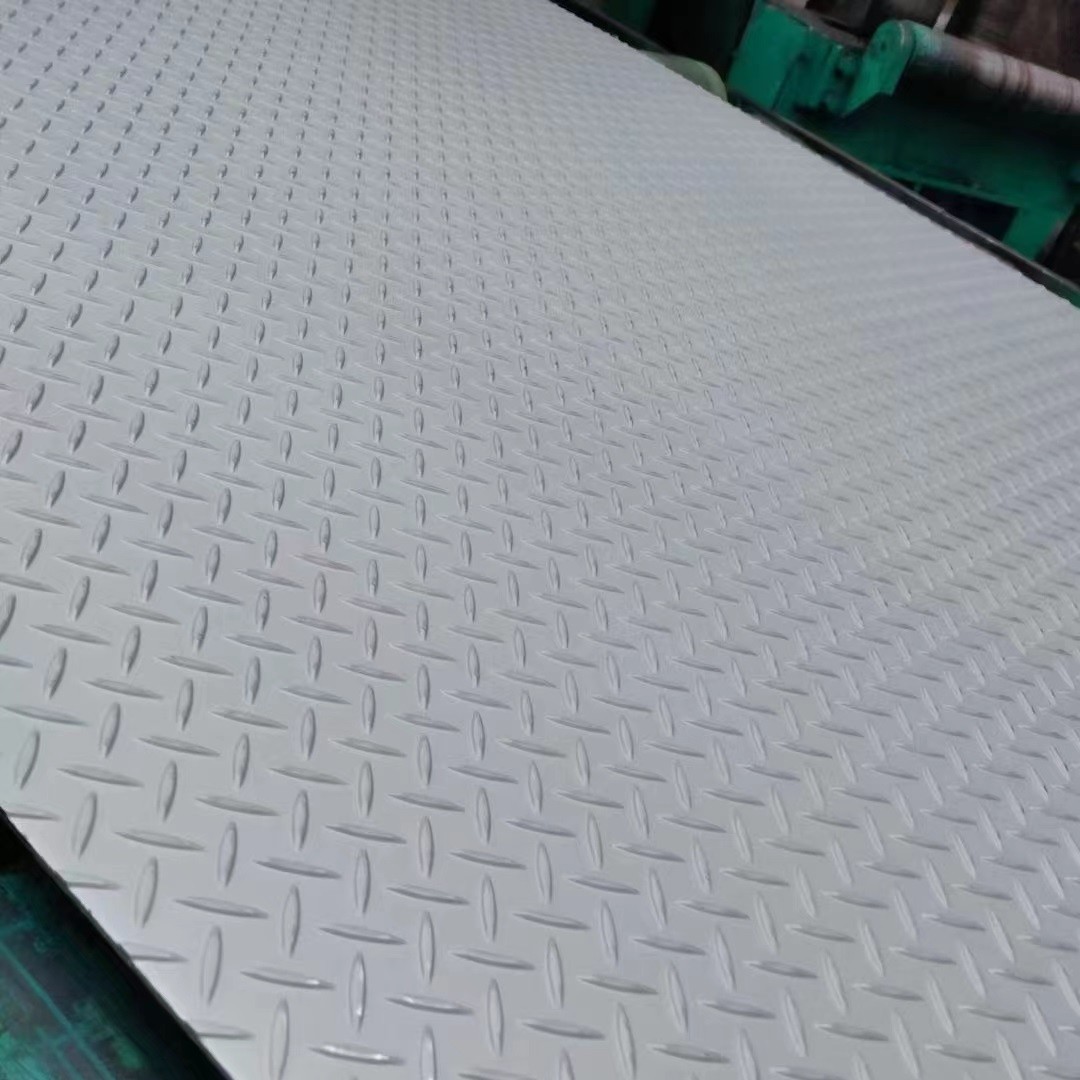

304 Stainless Steel Checkered Plate Rice Patteren Anti-Slip Stainless Sheets
| Item | Stainless Steel Checker Plate |
| Raw Material | Stainless steel sheet (hot rolled and cold rolled) |
| Grades | 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc. |
| Thickness | 1mm-10mm |
| Stock Thickness | 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm |
| Width | 600mm – 1,800mm |
| Pattern | Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc. |
| Finish | 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc. |
| Package | Standard export package |
Grade Specification of Our Stainless Steel Checkered Plate
| ASTM | EN | G/B | Cr Ni Mo C Cu Mn |
| ASTM 304 | EN1.4301 | 06Cr19Ni10 | 18.2 8.1 – 0.04 – 1.5 |
| ASTM 316L | EN1.4404 | 022Cr17Ni12Mo2 | 17.2 10.1 2.1 0.02 – 1.5 |
Advantages of Stainless Steel Checkered Sheet
1. Excellent Corrosion Resistance
The checked plate made of stainless steel is more resistant than ordinary carbon and galvanized steel sheets. Besides, the Cr element in stainless steel improves the atmospheric corrosion resistance, especially in chloride and alkaline corrosion.
2. Great Anti-slipping Performance
One of the biggest characteristics of stainless steel checker plate is that it has good anti-skid features due to concave and convex patterns. This can provide all-around traction and make it very practical.
3. High Workability
The plate is easy to weld, cut, form and machine with proper equipment. In addition, this processing procedure does not damage its mechanical properties.
4. Attractive Finish
It has high-quality modern appearance and strong metallic texture. The silver-grey finish and raised diamond pattern make it more attractive and decorative. Besides, it has many different patterns to choose from to meet different application needs.
5. Long Lifetime & Easy to Clean
It has a long lifespan of more than 50 years. Also, it is easy to clean and almost maintenance-free.
Application of Stainless Steel Checkered Plate
Because of its unique features and anti-skip texture, stainless steel checker plate have a wide range of applications worldwide. Especially, it is suitable for food machinery, pharmaceutical machinery, electronic weighing, refrigerator, cold storage, buildings, packaging, transmission belts, automatic doors and car system. It includes:
- 1. Construction: floor decking sheets, roofing panels, wall cladding, garages, storage system, etc.
- 2. Industry: engineer processing, loading ramps, packing, printing, logistics equipment, etc.
- 3. Decoration: elevator cabs, building curtain walls, cold storage, ceilings, special ornamental projects, etc.
- 4. Transportation: cargo trailer, the interior of vehicles, automobile stairs, subway station, trailer beds, etc.
- 5. Road Protection: walkways, stair pedals, trench covers, pedestrian bridges, escalator approaches, etc.
- 6. Other Uses: store signs, displays, bars, toolboxes, counters, emergency fire landings, food preparation areas, dinnerware, cupboard, water heater, kitchen utensil, ship deck, etc.
