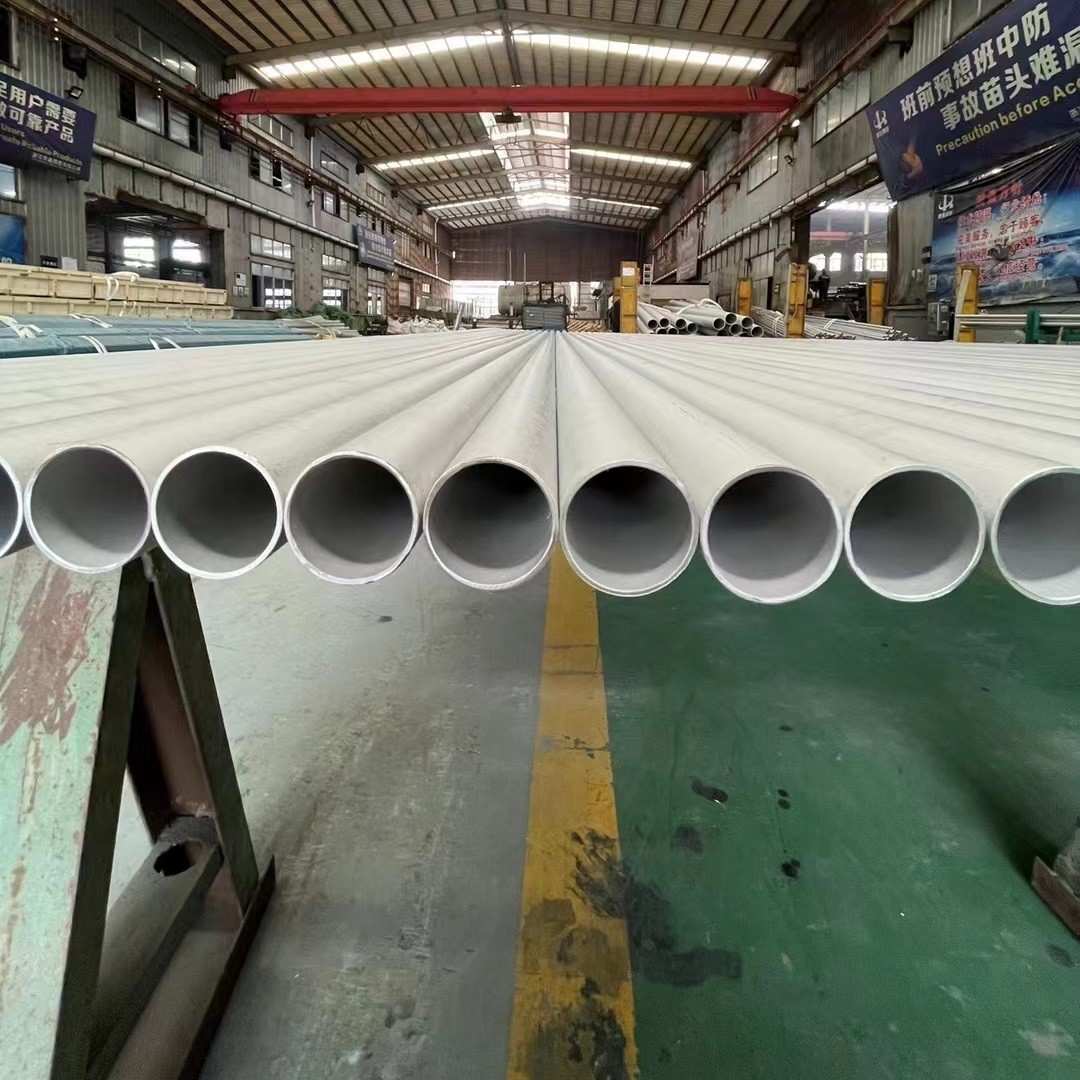

Name: TP310S Stainless Steel Pipe ASTM A312 Seamless Stainless Steel Tube for Boiler
Brand: DELTA
Price: 4000 USD

TP310S Stainless Steel Pipe ASTM A312 Seamless Stainless Steel Tube for Boiler

Brand Name : DELTA

Model Number : 304 304L 316L 316LN 316Ti 317L 321 310S 309S 347 2205 2507 904L 254SMO S32760 410S.etc

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 4000-5000 USD/Ton

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : TP310S Stainless Steel Pipe

Grade : 304 304L 410s 316L 316Ti 316ln 321 317L 2205 S32760 254smo 2507 310S 347 904L.etc

Standard : ASTM GB EN

Length : 6m or custom cutting any length as request

Diameter : DN10 - DN400

Wall thickness : SCH10 - XXS or unstandard size

Type : seamless pipe

Service : cutting, polishing

application : Heat exchanger

Packing : wooden box or PP bag

Contact Now

TP310S Stainless Steel Pipe ASTM A312 Seamless Stainless Steel Tube for Boiler

Chemical Composition of 310S Stainless Steel

SAE	C	Mn	P	S	Si	Cr	Mo	Ni
310H	0.04-0.08	≤2.0	≤0.045	≤0.03	≤1.5	24.0–26.0		19.0–22.0
310S	≤0.08	≤2.0	≤0.045	≤0.03	≤1.5	24.0–26.0	≤0.75	19.0–22.0

Mechanical Properties of 310S Stainless Steel

Tensile strength	Yield strength	Elastic modulus	Poisson’s ratio	Elongation	Reduction of area	Hardness
≥515Mpa	≥205Mpa	190-210 GPa	0.27-0.30	40%	50%	≤95

Applications

• Cryogenic Components

• Food Processing

• Furnaces—burners, doors, fans, piping, and recuperators

• Fluidized Bed Furnaces—coal combustors, grids, piping, wind boxes

• Ore Processing/Steel Plants—smelter and steel melting equipment, continuous casting equipment

• Petroleum Refining—catalytic recovery systems, flares, recuperators, tube hangers

• Power Generation—coal gasifier internals, pulverized coal burners, tube hangers

• Sintering/Cement Plants—burners, burner shields, feeding and discharging systems, wind boxes

• Thermal Processing—annealing covers and boxes, burner grids, doors, fans, muffles and retorts, recuperators, walking beams

Material Summary

SAE 310S stainless steel is the low carbon version of 310 and is suggested for applications where sensitization, and subsequent corrosion by high temperature gases or condensates during shutdown may pose a problem.

SAE 310 stainless steel is a highly alloyed austenitic stainless steel used for high temperature application. The high chromium and nickel content give the steel excellent oxidation resistance as well as high strength at high temperature. This grade is also very ductile and has good weldability enabling its widespread usage in many applications.

310/310S find wide application in all high-temperature environments where scaling and corrosion resistance, as well as high temperature strength and good creep resistance are required.
