Brand Name : TISCO POSCO BAOSTEEL
Model Number : 2205 / 1.4462 / UNS S32205 / UNS S31803
Certification : ISO
Place of Origin : China
MOQ : 1 Ton
Price : 2500-3500 USD/Ton
Payment Terms : L/C, T/T, Western Union
Supply Ability : 10Ton per week
Delivery Time : 5 - 12 days based on the quantity
Packaging Details : standard packing for export
Products Name : Stainless Steel Plate
Grade : 2205 / 1.4462 / UNS S32205 / UNS S31803
Thickness : 0.6-30.0mm
Standard : ASTM EN GB
Width : 1000mm 1219mm 1500mm
Surface : 2B NO.1
Brand : TISCO BAOSTEEL
MOQ : 1 Ton
ASTM A240 UNS S32205/S31803 2205 Duplex Stainless Plate Width 1250mm 1500mm 2000mm
Products Specification
Products Name | duplex stainless steel plate |
Grade | 2205 / S31803 / S32205 / 1.4462 |
Thickness | Cold Rolled 0.6 - 3.0mm , Hot Rolled 3.0 - 80.0mm |
Width | 1000mm 1219mm 1500mm 1800mm 2000mm |
Standard Size | 1000*2000mm 1219*2438mm 1500*6000mm 1800*6000mm 2000*6000mm or cutting as request |
Brand | POSCO TISCO BAOSTEEL JISCO ESS |
Other Grade | 304 316L 309S 310S 321 347 2507 904L 254SMO.etc |
Service | Cutting |
C | Mn | Si | P | S | Cr | Mo | Ni | N | |
2205 (S31803) | 0.03 | 2.0 | 1.0 | 0.03 | 0.02 | 21.0- 23.0 | 2.5-3.5 | 4.5-6.5 | 0.08-0.20 |
2205 (S32205) | 0.03 | 2.0 | 1.0 | 0.03 | 0.02 | 22.0-23.0 | 3.0-3.5 | 4.5-6.5 | 0.14-0.20 |
Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (HB) MAX |
2205 | 90 | 65 | 25 | 217 |
2205 Duplex Stainless Steel Equivalent Standards:
Standard Size of our 2205 Duplex Stainless Steel Plate in Stock
Cold Rolled 2205 duplex stainless steel sheet | ||||
0.4*1219*2438mm | 0.5*1219*2438mm | 0.6*1219*2438mm | 0.8*1219*2438mm | 1.0*1219*2438mm |
1.2*1219*2438mm | 1.5*1219*2438mm | 2.0*1219*2438mm | 2.5*1219*2438mm | 3.0*1219*2438mm |
Hot Rolled 2205 duplex stainless steel plate | ||||
3.0*1500*6000mm | 4.0*1500*6000mm | 5.0*1500*6000mm | 6.0*1500*6000mm | 8.0*1500*6000mm |
10.0*1500*6000mm | 12.0*1500*6000mm | 14.0*1500*6000mm | 16.0*1500*6000mm | 20.0*1500*6000mm |
6.0*2000*6000mm | 8.0*2000*6000mm | 10.0*2000*6000mm | 12.0*2000*6000mm | 14.0*2000*6000mm |
16.0*2000*6000mm |
Alloy 2205 (UNS S32305/S31803) is a 22% chromium, 3% molybdenum, 5-6% nickel, nitrogen alloyed duplex stainless steel plate with high general, localized, and stress corrosion resistance properties in addition to high strength and excellent impact toughness.
Alloy 2205 duplex stainless steel plate provides pitting and crevice corrosion resistance superior to 316L or 317L austenitic stainless steels in almost all corrosive media. It also has high corrosion and erosion fatigue properties as well as lower thermal expansion and higher thermal conductivity than austenitic.
2205 Duplex Stainless Steel Plate Applications:
![]() |

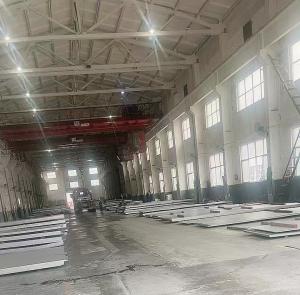

ASTM A240 UNS S32205/S31803 2205 Duplex Stainless Plate Width 1250mm 1500mm 2000mm Images |
