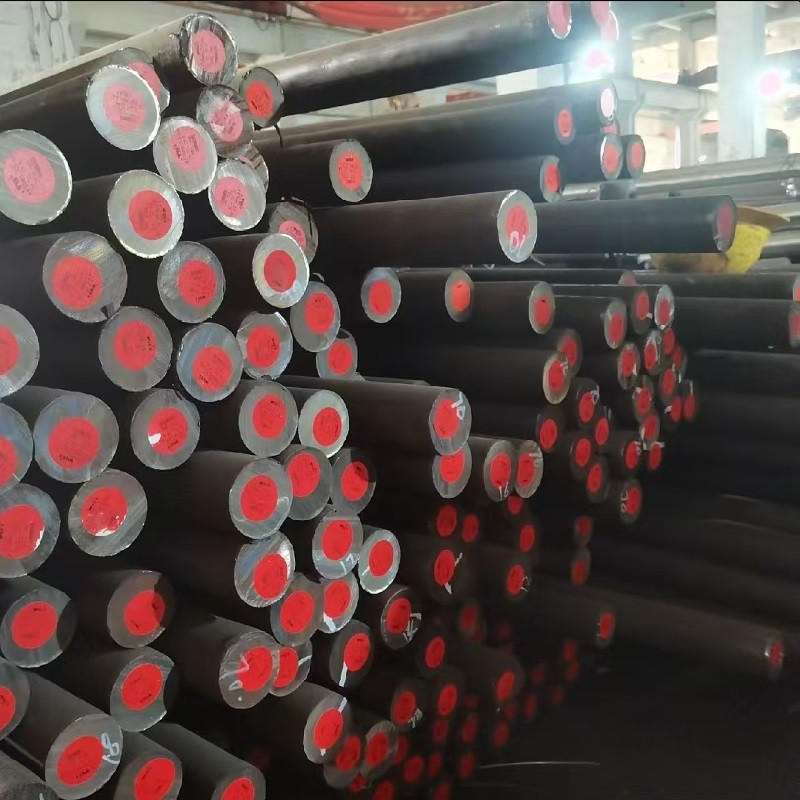

F60 / S32205 / Duplex 2205 Stainless Steel Round Bar Diameter 4 - 300mm Bright Black Bars

Brand Name : DELTA

Model Number : 201 304 316L 316Ti 317L 321 309S 310S 2205 17-4PH XM-19 440C

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 2200 - 3500 USD/Ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Shape : round

Standard : ASTM EN GB JIS

Grade : 201 304 316L 316Ti 309S 310S 317L 321 329 2205 2507,440C.etc

Application : Construction,Industry,surgical tools,seawater equipment.,kitchenware

Length : Customers' Requirements,5.8m,6m,2m-6m,or as required

Size : custom as request

Packing : Standard Seaworthy Package,In wooden cases(for FCL/ LCL shipment)

Service : Cutting, surface finishing

Contact Now

F60 / S32205 / Duplex 2205 Stainless Steel Round Bar Diameter 4 - 300mm Bright Black Bars

Products Specification

Products Stainless Steel Bar
Grade F60 / 1.4462 / S32205 / 2205
Diameter 5 - 350mm
Length 6m or custom cutting any length as request
Finishing Bright Bar / Black Surface
Heat Treatment Solid Solution , ageing
Surface Process Polishing , Peeling
Other Grade

201 303 304 304L 309S 310S 316L 316Ti 317L 321 347 410 420 430 431

2205 2507 904L 254SMO 416 440A/B/C.etc
MOQ 500 Kgs
Loading Port Shanghai Port
Processing Cutting
Packing Wooden box or wrapping by PP bag

2205 Duplex Stainless Steel Bar Description

Duplex 2205 is a two-phase, ferritic, austenitic, 22% chromium, 3% molybdenum, 5% to 6% nickel alloy stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, which is twice that of standard austenitic stainless steel grades. It also exhibits good fatigue strength and excellent resistance to stress corrosion, cracking, pitting, erosion and general corrosion in harsh environments.

Chemical Composition

C Si Mn Cr Ni Mo S P
≤ 0.03 ≤ 1.0 ≤ 2.0 21.0～23.0 4.5～6.5 2.5～3.5 ≤ 0.02 ≤ 0.03

Mechanical Properties

Tensile Strength Kb (MPa) Yield Strength σ0.2 (MPa) Elongation D5 (%) Hardness
≥620 ≥450 ≥25 ≤ 293HB

Physical Performance

Density(g/cm³) Modulus of Elasticity(Gpa) Coefficient of Thermal Expansion(10-6/°C) Coefficient of Thermal Conductivity(W/m*K) Resistivity(ΜΩ. cm)
7.88 190 13.7 19.0 80

Standards Of Duplex 2205 Round Bar
Grade EN 10088-3 EN 10272 AD2000-
W2/W10		 ASTM A 479 ASME SA 479 NACE MR 0175
Duplex 2205 Round Bars 20-450 mm 20-160 mm - 20-450 mm 20-450 mm Independent of size
Why Use Duplex 2205 Round Bar?
  • Very Good weldability and workability
  • High resistance to chloride stress corrosion cracking
  • Good general corrosion resistance
  • Resistance to chloride pitting and crevice corrosion
  • Good sulfide stress corrosion resistance
  • High Strength
Surface Finishes Of Duplex Steel UNS S32205 Round Bar
CD Cold drawn P Polished
BD Bright drawn SRE Slit rolled edge
CG Centreless ground HF Hot finished
CF Cold finished HRAP Hot rolled annealed and pickled
P&T Peeled and turned RT Rough turned/peeled
ST Smooth turned PR Peeled and reeled
Duplex 2205 Round Bar Suppliers
  • Blocks
  • T-Bars
  • Precision Ground Bars
  • Square
  • Round Rod
  • Hollow
  • Rings
  • Round
  • Rod
  • Channel Bars
  • Flat Bars
  • Half Round Bars
  • Forging
  • Profiles
  • Billet
  • Triangle
  • Ingot
  • Rectangular Bar
  • I/H Bars
  • Hex (A/F)
  • Threaded
  • Rectangle

Industrial Uses Of ASTM A276 Type 2205 Round Bar
  • used for Oil and gas industry
  • for Desalination plants
  • Off-Shore Oil Drilling Companies
  • Mechanical components requiring high strength
  • Salt evaporation industry
  • used for Pulp and paper industry
  • used in Refineries and petrochemical plants
  • for Seawater cooling
  • to manufacturing Fasteners
  • for Geothermal wells
