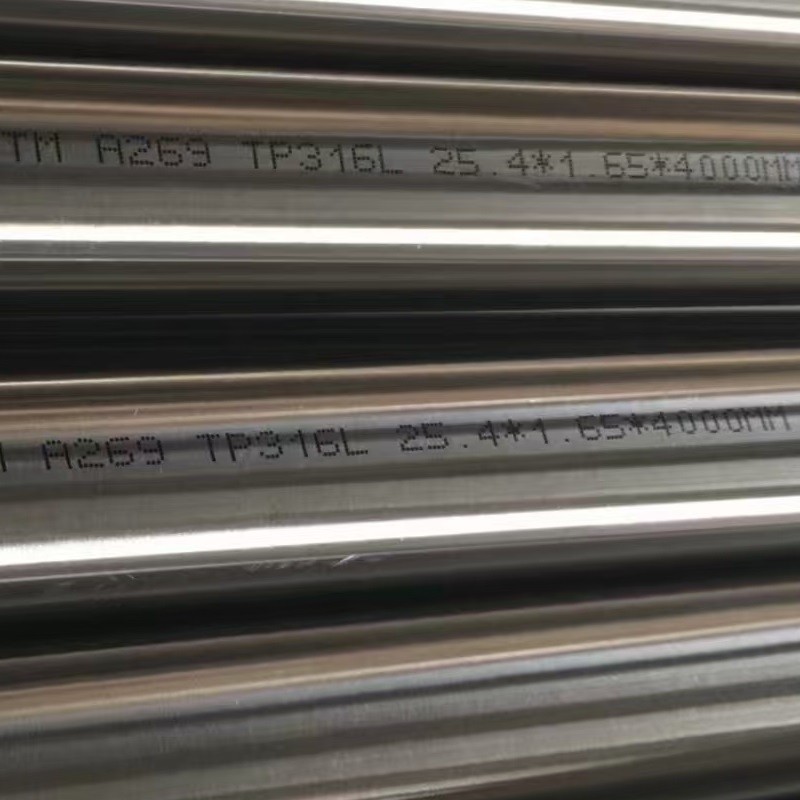

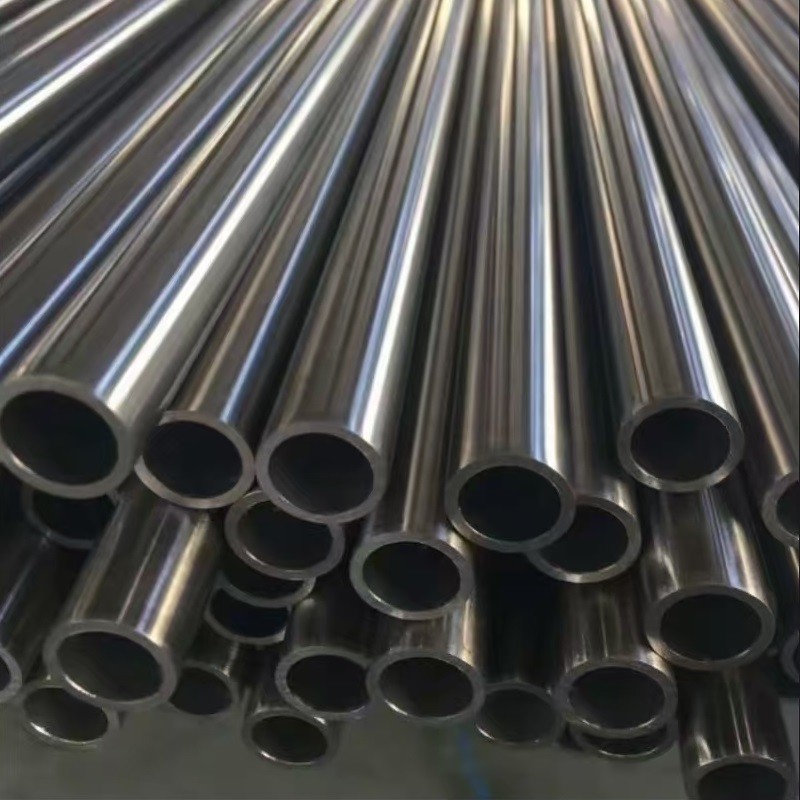

Bright Annealed Seamless BA Stainless Steel Pipe TP316L Small Diameter BA Pipe

Name: Bright Annealed Seamless BA Stainless Steel Pipe TP316L Small Diameter BA Pipe
Brand: DELTA
Price: 2400 USD

Wholesale Bright Annealed Seamless BA Stainless Steel Pipe TP316L Small Diameter BA Pipe from china suppliers

Brand Name : DELTA

Model Number : 201 304 316L 321 310S 314 347 2205 2507 904L.etc

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 2400 - 3500 USD/Ton

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : BA Stainless Steel Pipe

Grade : 304 316L 321 2205 310S 904L.etc

Standard : ASTM GB EN

Length : 6m or as request

Diameter : 6 - 219mm or as clients request

Wall thickness : 0.4 - 8.0mm

Type : seamless pipe

Service : cutting

Other Shape : square, rectangle

Contact Now

Bright Annealed Seamless BA Stainless Steel Pipe TP316L Small Diameter BA Pipe

Products Specification

Standard	ASTM A213, ASTM A269, ASME SA213, ASME SA269
Pipe Type	Bright Annealed Stainless Steel Tubing
Grades	304, 304L, 316, 316L, 321, 310S, 2205, 2507
Dimensions	Outer Diameter (OD): 1.00 mm to 76.2 mm
Wall Thickness	0.2 mm to 6.0 mm
Length	Up to 12 meters (custom lengths available upon request)
Manufacturing Process	Cold Drawn, Bright Annealed, Seamless
Material Surface Finish	Bright Annealed (BA), Mirror Polished, No. 4 Finish
End Type	Plain End (PE), Beveled End (BE), Threaded End (TE)
Certifications	ISO 9001, EN 10204 3.1 / 3.2, PED, ASME

High purity ba/ep tubing Pipe, length 6 meters

Size:6.35*0.89mm,6.35*1.00mm,9.53*0.89mm,9.53*1.00mm,12.7*0.89mm,12.7*1.24mm,12.7*1.65mm,19.05*1.24mm,19.05*1.65mm,25.4*1.65mm,38.1*1.65mm,50.8*1.65mm,63.5*1.65mm
Standard Length:4m 6m

Specifications:

Imperial size		Metric size
OD inch	WT inch	OD mm	WT mm
1/8 (0.125)	0.028	3.18	0.71
	0.035	3.18	0.89
3/16 (0.188)	0.028	4.76	0.71
	0.035	4.76	0.89
	0.049	4.76	1.24
1/4 (0.250)	0.035	6.35	0.89
	0.049	6.35	1.24
	0.065	6.35	1.65
	0.083	6.35	2.11
3/8 (0.375)	0.035	9.53	0.89
	0.049	9.53	1.24
	0.065	9.53	1.65
	0.083	9.53	2.11
1/2 (0.500)	0.035	12.7	0.89
	0.049	12.7	1.24
	0.065	12.7	1.65
	0.083	12.7	2.11

Tubing length up to 32,808 feet (10,000 m) For control line, chemical injection line

Available materials

Austenitic: Stainless steel 316L, Stainless steel 304L,
Stainless steel 321
Duplex: S31803, S32205
Super Duplex: S32750
Nickel alloy: N06625, N08825
Tolerance:±0.05mm
Dimension Range of Tubing
Outside Diameter: 1/8" – 1" (3.175 – 25.4 mm)

Dimension Tolerance

ASTM A269 / ASME SA269

Size OD

Tolerance OD

Wall thickness

≤1/2"
(≤12.7 mm)

1/2
(≤12.7≤25.4)

±0.005"
(±0.13 mm)

±15%
±10%

Features:

1. To decrease welds is to improve safety.

2. Coiled Stainless Steel Tubing doesn’t need welds, so can save users more construction time than using traditional strength tubing.

3. Coiled Stainless Steel Tubing is pliant which helps to decrease welding spatters and keep material clean.

4. Coiled Stainless Steel Tubing is seamless, and all have passed pressure test which reduce the risk of leakage.

5. It’s easy to pack, facilitates storage and shipping.

6. Seamless coil tubing reduce scraps.

Bright Annealed Seamless BA Stainless Steel Pipe TP316L Small Diameter BA Pipe
